25mm small differential pressure gauge with relay

FOB Price:

US 29.28-89.98 / Unit

Min.Order Quantity:

10 Unit/Units

Supply Ability:

500 Unit/Units per Week

Port:

Shenzhen,Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

TEREN

Products Model:

DPG3000

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: DPG3000

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: one piece in one box,gross weight is 0.5kg
Delivery Detail: Shipped in 3 days after payment

Specifications

Product Description

Applications & Features

Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential pressure. It can replace most of the traditional pointer mechanical gauges.
It can measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid level of bubbler systems and pressure amplifier or hydraulic system
It can be used in medical care equipment to monitor blood and respiratory pressures.
Suitable for embedded installation and wall mount.
Multiple ranges and engineering units selectable
No any movable parts, no any effect on vibration
The accuracy is up to ±2% FS
Function keys: zero calibrate, units select, relay set, etc.
Optional arch LED display for output and alarm.

Specifications

Medium: non-combustible, non-corrosive air, not sensitive to moisture, dust, condensation and oil

Medium Temp.: 0-60°C

Materials: cast aluminum housing and PC plate

Work Environment: -20~+85°C

Compensated Temp.: 0-50°C

Work pressure: 1, 2 or 5Kpa for different ranges overload 5xFS,burst 10xFS

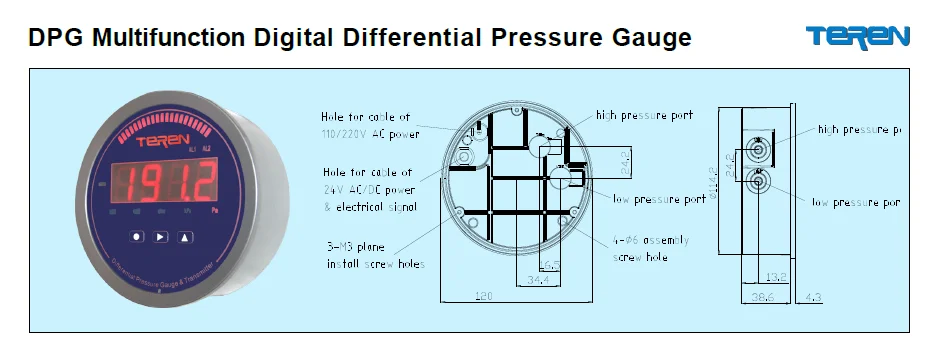

Dimension: see diagram

Connection: 1/8” ID tubing, two pairs (on left side and back)

Display: 4 bits 0.8” red LED

Relay output: 2×SPST, 1A/30VDC,0.5A/125VAC

Accuracy: ±2.0% FS⁽¹⁾

Long term stability: ±0.5%FS /Year

Thermal effect: <0.05%FS/℃

Response time: 0.5-30s

Power: 15-28V AC/DC, optional 85-265V AC

Key: 3 touch buttons

Protection: IP65

Weight: 340g

Approval: CE

Note (1): for range 0-60pa, the accuracy is 4.0%FS

Models

Model	DPG					DP gauge
Range		See table				Ranges selection
Arched LED			0 1			N/A Arch LED
Relay				0 1		N/A 2*SPDT
Power					0 1	12-28VDC/AC 85-265VAC

Measuring ranges

Code	UNIT & Ranges
Code	Pa	Pa	KPa	In W.C	mm W.C	mbar
1	0-60	60.00	0.060	0.250	6.000	0.600
2	0-125	125.0	0.125	0.500	12.00	1.250
3	0-250	250.0	0.250	1.000	25.00	2.500
4	0-500	500.00	0.500	2.000	50.00	5.000
5	0-750	750.0	0.750	3.000	75.00	7.500
6	0-1000	1000	1.000	4.000	100.0	10.00
7	0-2000	2000	2.000	8.000	200.0	20.00
8	0-3000	3000	3.000	12.00	300.0	30.00
9	0-5000	5000	5.000	20.00	500.0	50.00
A	0-10000	10000	10.00	40.00	1000	100.0

Note: 1. For zero center models, add“Z”at the end of the model. For example, DPG1***Z, means -30-0-30pa

2. 5 engineering units can be set by the key and then the related LED will be on

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
