Home > Products > Refrigeration Fittings > Pressure Controller

compacted low cost price pressure gauge price mpa pressure gauge power type

compacted low cost price pressure gauge price mpa pressure gauge power type

FOB Price:

US 23.6-70 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Month

Port:

Shenzhen / Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit Card

Brand:

TEREN

Products Model:

D2PH/M

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: D2PH/M

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 10 days after payment

Specifications

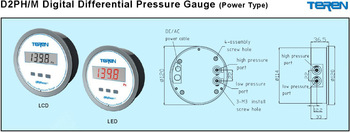

D2PH/M Digital Differential Pressure Gauge(PowerType)

Product Description

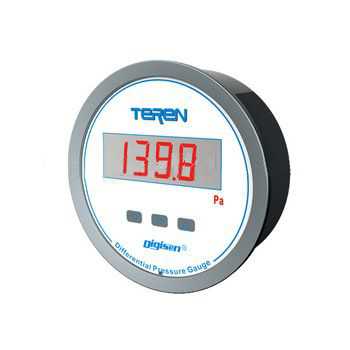

D2PH /D2PM LED display as below:

D2PH /D2PM, LCD display as below:

Applications & Features

Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential` pressure. It can completely replace the traditional pointer mechanical gauges.
It can measure fan and blower pressures, filter resistance, air velocity, pressure drop across orifice plates, differential pressure of medical equipment or pharmaceutical machine, etc.
No any movable parts, no any effect on vibration.
With ultra-thin design of 33mm, it could be flush, surface or wall mount
Fashion and state of art housing design.
Function keys: zero reset, units select, display update time, automatic sleep time, sound-light alarm, etc.
Built-in buzzer and backlight, for sound-light alarm.

Specifications

Medium: non-combustible, non-corrosive air, not sensitive to moisture, dust, condensation and oil

Working Temp. : LED-20~70°C; LCD-10~60°C

Medium Temp.: 0~60°C

Temp. Compensation: 0~50°C

Working pressure: overload 10xFS, burst 15xFS

Accuracy: up to ±1.0% FS, see accuracy table

Long term stability: ±0.5%FS /Year

Thermal effect: <0.05%FS/℃(zero), <0.08%FS/(FS)

Display: 4 bits LCD,18mm character height with units indication, or 4 bits 0.8" red LED

Sound-light alarm: by buzzer and backlight
Power: 15~28VDC/AC or 85~265VAC

Process Connection: 5mm ID tubing, two pairs(on left or back side)
Keys: 3 touch buttons
Materials: ABS
Protection: IP65
Weight: 260g
Approval: CE
Accessory: A-S0 is standard. Options are A-S1, A-S2 and A-S7-X. They can be used for surface, panel or flush mount and should be ordered separately. See details in Accessories.

Models

Model	D2PH				High Accuracy digital DP gauge
Model	D2PM				Executive digital DP gauge
Range		See table
Display			0		LCD(Backlight)
Display			1		LED
Power				0	15~28VAC/DC
Power				1	85~265VAC

Measuring range

Code	UNIT & Range & Resolution for Display						Accuracy(%FS)
Code	Pa	Pa	KPa	In W.C	mm W.C	mbar	D2PH	D2PM
1	0-60	60.00	0.060	0.250	6.000	0.600	1%	3%
2	0-125	125.0	0.125	0.500	12.50	1.250	1%	2%
3	0-250	250.0	0.250	1.000	25.00	2.500	1%	1%
4	0-500	500.0	0.500	2.000	50.00	5.000	1%	1%
5	0-1000	1000	1.00	4.000	100.0	10.00	1%	1%
6	0-2500	2500	2.50	10.00	250.0	25.00		1%
7	0-5000	5000	5.00	20.00	500.0	50.00		1%
8	0-10000	10000	10.00	40.00	1000	100.0		1%
9	0-20000	20000	20.00	80.00	2000	200.00		1%

Note: 1. 5 engineering units can be set by the key and related LCD will be on

2. For zero center models, add "Z " at the end of the model.

For example, D2PM100Z, means -30-0-30pa. Only ranges 1~6 have this selection

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Certifications

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
